Transformable Lamp
An embodiment design and prototyping exercise using CAD tools
Transformable lamp: Text
As a part of the coursework ¨Computer Aided Product Design¨, during my Master of Design, I was required to select an existing concept design, create the embodiment design and prototype the design using CAD tools. I selected a concept of a lamp and included the feature of shape transformation to add to the aesthetic appeal of the product.
Transformable lamp: Text
Concept selection
By gathering concept design of transforming structures, one design was chosen to be prototyped.
Transformable lamp: Text
Transformable lamp: Image
Embodiment design
From the selected concept design, individual parts were designed by selecting appropriate materials and manufacturing methods. The parts were designed by using CAD tools such as Sketchup and Solidworks
Transformable lamp: Text
Transformable lamp: Image
Rendered with materials
The design has been rendered in Keyshot by applying materials
Transformable lamp: Text
Transformable lamp: Image
Low-Fi Prototype

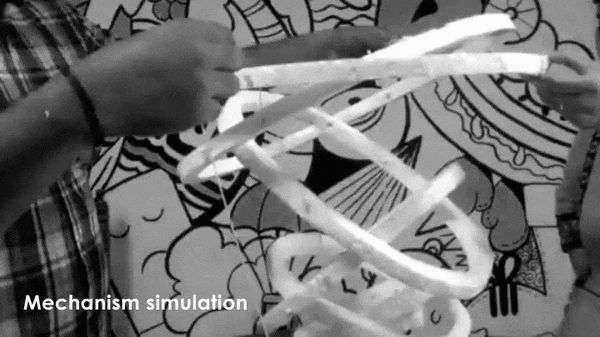

A low fidelity prototype was created to test the mechanism
Transformable lamp: Text
Transformable lamp: Image
Manufacturing
From the part files in CAD, technical drawings were created for manufacturing them.
Transformable lamp: Text
Transformable lamp: Image
High-Fi Prototype
The manufactured parts were assembled together and the design was evaluated from the High Fidelity Prototype. Design flaws have been noted for iterative improvement.
Transformable lamp: Text
Transformable lamp: Image
